XT V2/V3 Cylinder Head, Piston Head, Nozzle (Wide Pad / 21mm)

£16.50
Availability: Out Of Stock0
Brand: XT
Product Code: XT65
Product viewed: 3364

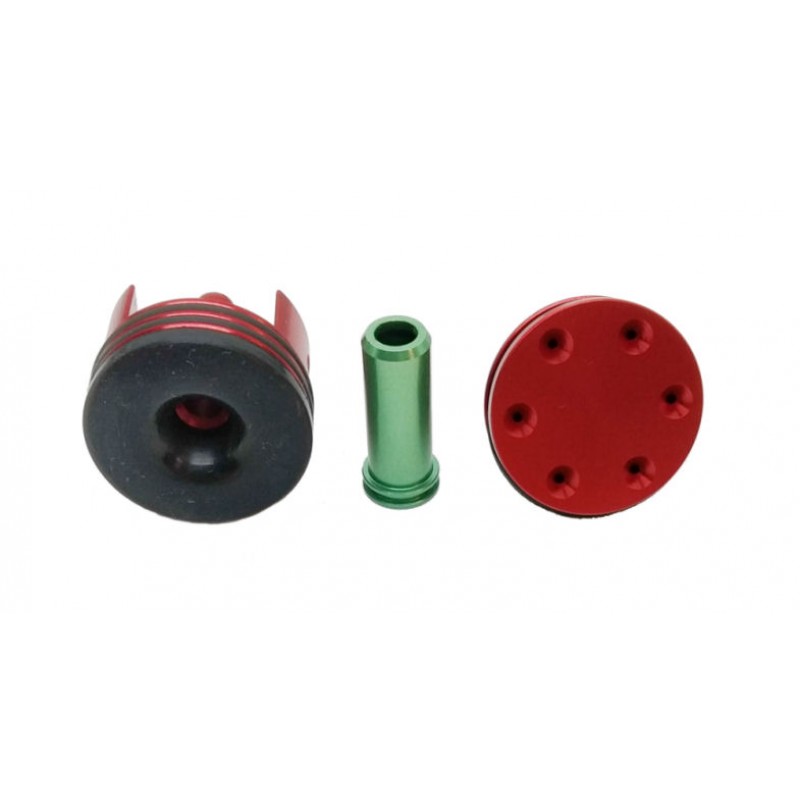

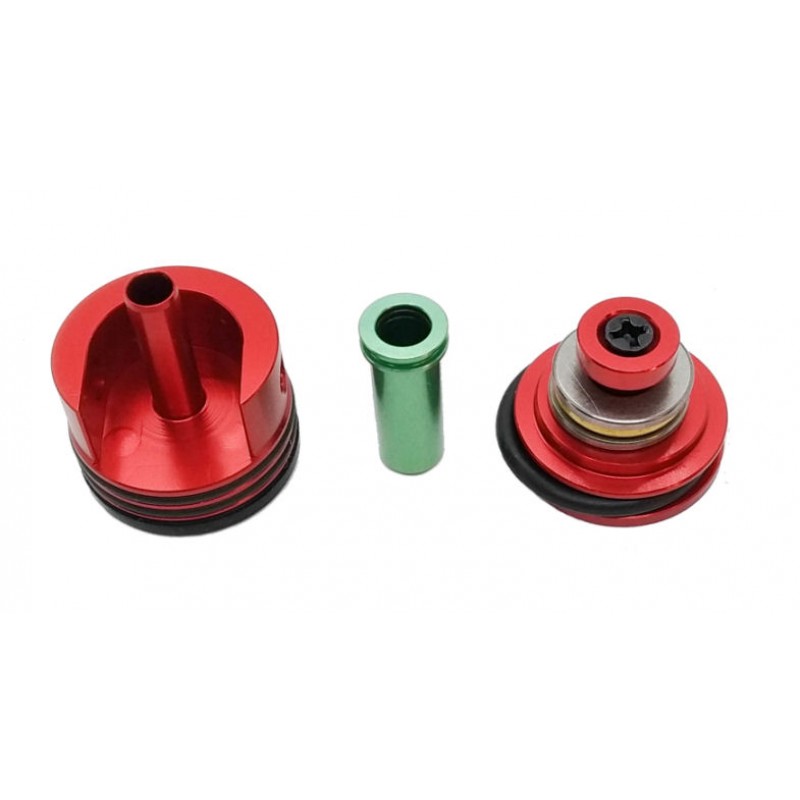

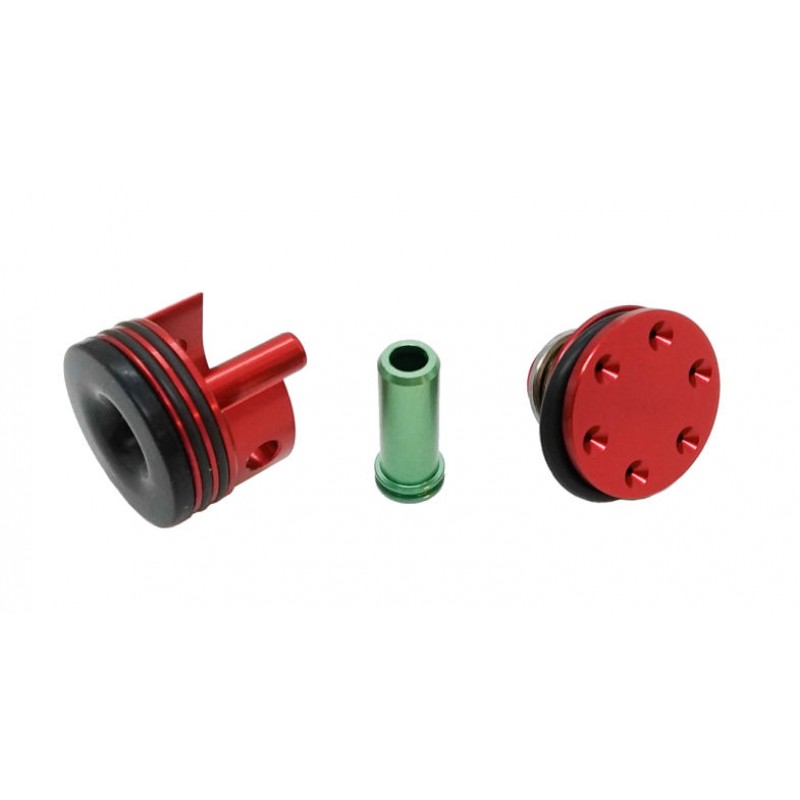

Combination pack that includes the latest edition of the v2/v3 cylinder head.

Cylinder Head
- CNC machined from 6061 aluminium
- Wider pad that eliminates the 'deadspace' that some cylinder heads can have.  The pad diameter is 23.7mm.  This can help boost efficiency.
- The wide pad has a wider airflow opening, allowing the compressed air to flow with less resistence.
- Tapered shaft. This can reduce oring wear when fitting nozzles.
- Viton / oil resistent orings
- Designed to fit the most common size of cylinder with an inner diameter of 23.6mm - 23.8mm.  The shaft diameter is 5.3mm.

Piston Head
- CNC machined from 6061 aluminium
- 6 vents
- 16mm cross-head screw to allow for AOE correction
- Thrust bearing
- Viton / oil resistent orings

Nozzle
- CNC machined from 6061 aluminium
- 21mm ridgeless design for improved hop chamber fitment
- Single o-ring
