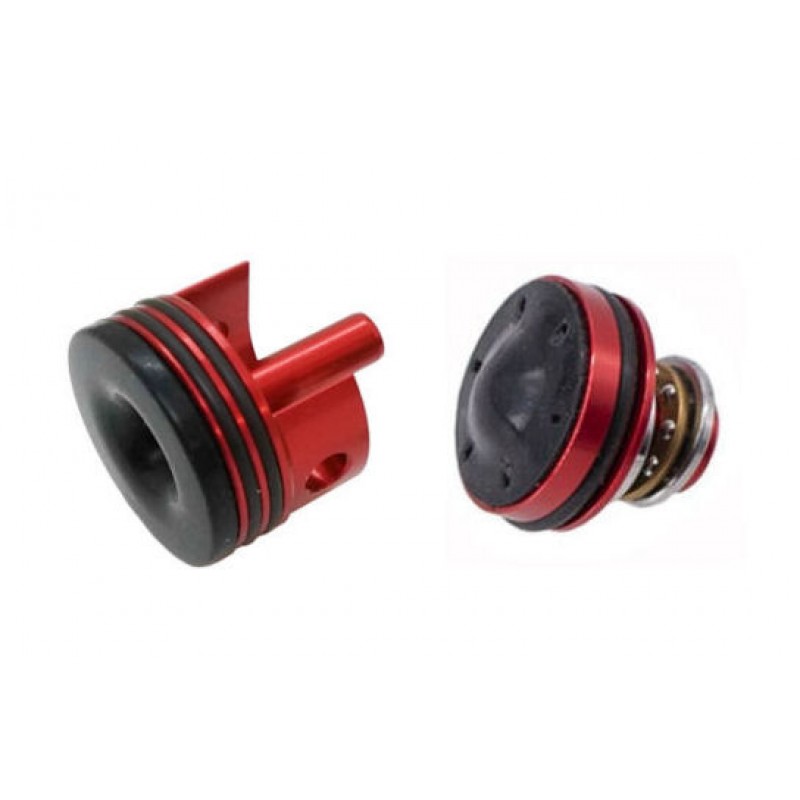

Our own cylinder head with the custom WIDE pad together with a "silent" piston head. The cylinder head is the latest design; CNC machined from aluminium 6061. The "silent" piston head doesn't really make much different to the sound, however it does provide extra cushioning, adds a little extra air-volume and fits really well with the WIDE pad on the cylinder head.
Cylinder Head
- CNC machined from 6061 aluminium
- Wider pad that eliminates the 'deadspace' that some cylinder heads can have. The pad diameter is 23.7mm. This can help boost efficiency.
- The wide pad has a wider airflow opening, allowing the compressed air to flow with less resistence.
- Tapered shaft. This can reduce oring wear when fitting nozzles.
- Viton / oil resistent orings
- Designed to fit the most common size of cylinder with an inner diameter of 23.6mm - 23.8mm. The shaft diameter is 5.3mm.
Piston Head
- Machined from aluminium
- Silent / convex pad design that fits well with the wide pad concave design, maximising air volume
- Thrust bearing
